Vane pump 5430
for wastewatersubmersiblestationary

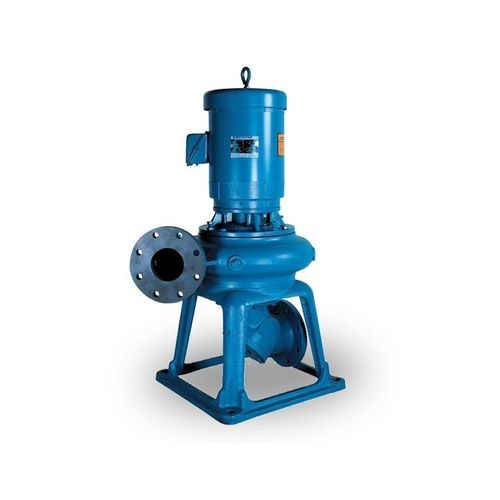

Vane pump - 5430 - Fairbanks Nijhuis - for wastewater / submersible / stationary
Vane pump - 5430 - Fairbanks Nijhuis - for wastewater / submersible / stationary
Add to favorites
Compare this product


Characteristics

Technology
vane
Fluid
for wastewater
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
discharge, handling, sewage
Material
cast iron
Other characteristics
vertical
Flow

Min.: 3 m³/h
(105.944 ft³/h)

Max.: 1,855 m³/h
(65,508.70677 ft³/h)

Head

Min.: 1.5 m
(4'11" )

Max.: 91 m
(298'06" )

Description

Pentair Fairbanks Nijhuis 5430 Series Vertical Biltogether Solids Handling Pumps Fairbanks Nijhuis vertical solids handling pumps have over 100 years of proven experience in the pumping of solids, slurries, sludge, pulp, trash, sewage, and grit. These pumps are specifically designed to pass solids, trash, and long stringy materials. Discharge Sizes from 2" to 10" in Diameter Bladeless Impellers With 2" thru 10" (51 to 254 mm) discharge sizes - capable of passing 10% to 25% more solids, long stringy material, and trash than a conventional two-vane impeller Lengthened Shaft Life Reduced Maintenance and Downtime Costs Smooth, Quiet and Troublefree Installation Constructed of Cast Iron Volutes and Impellers

Catalogs

No catalogs are available for this product.

See all of Fairbanks Nijhuis‘s catalogs
