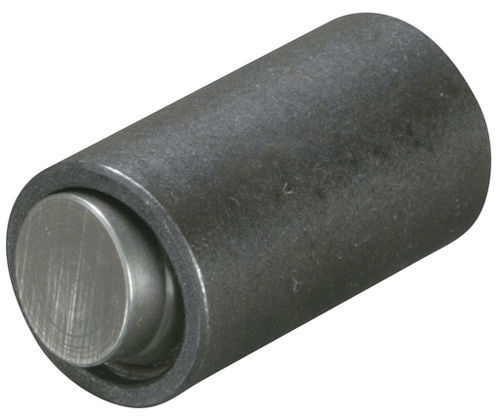

Self-aligning pad BBU-100-F

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Diameter Overall: 3/8 in. Length Body: 5/16 in. Diameter Contact Surface: 5/32 in. Height Standoff: 1/16 in. Degree Swivel: 28 Degrees. Thread Internal - Tap: #4-40 Length Thread: 1/4 in. Diameter Ball: 3/16 in. Part No. Ball Only: BUB-187-F Rating Load: 1,835 lbs.
