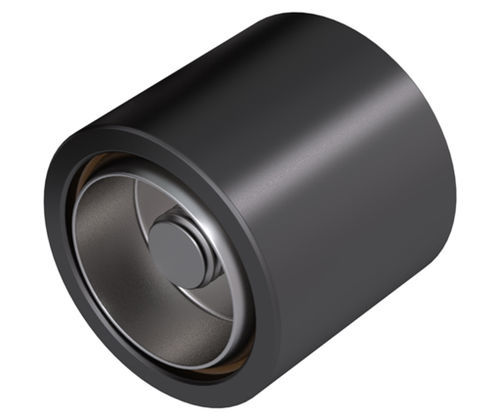

Self-aligning pad BBU-500

The replaceable pad swivels to allow for self-alignment on uneven surfaces. Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter. Diameter Overall: 5/8 in. Length Body: 3/4 in. Length Thread: 15/64 in. Thread Internal - Tap: 1/4-28 Degree Swivel: 20 Degrees. Standoff : 1/8 in. Standoff : 1/4 in. Diameter Ball: 1/2 in. Diameter Contact Surface: 3/8 in. Rating Load: 5,849 lbs.
