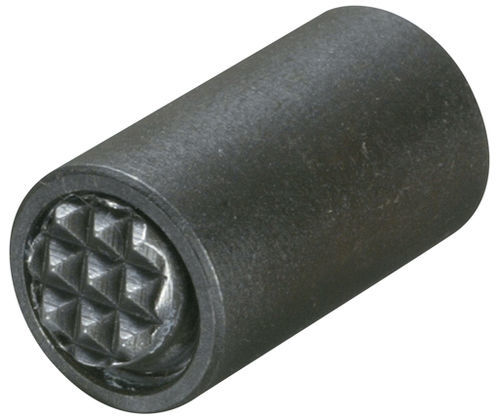

Self-aligning pad BBU-100-S

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately Diameter Overall: 7/16 in. Length Body: 15/16 in. Diameter Contact Surface: 1/4 in. Height Standoff: 1/8 in. Degree Swivel: 28 Degrees. Thread Internal - Tap: #8-32 Length Thread: 1/2 in. Diameter Ball: 9/32 in. Part No. Ball Only: BUB-200-S-T Pattern Tooth: SF Rating Load: 3,339 lbs.
