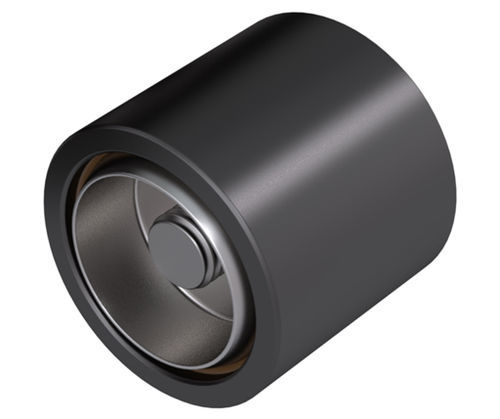

Self-aligning pad MBBU-1722

The replaceable pad swivels to allow for self-alignment on uneven surfaces. Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter. Diameter Overall: 17 mm. Length Body: 18 mm. Diameter Contact Surface: 7.5 mm. Thread Internal - Tap: M6x1.0 Degree Swivel: 20 Degrees. Standoff : 4 mm. Standoff : 6 mm. Diameter Ball: 13 mm. Diameter Replaceable Pad: 10 Rating Load: 6,170 lbs.
