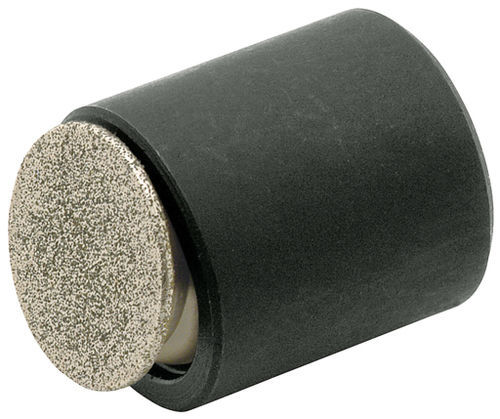

Self-aligning pad MBBU-1012-FC-DS

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Diameter Overall: 10 mm. Length Body: 10.5 mm. Diameter Contact Surface: 8 mm. Standoff : 2 mm. Degree Swivel: 28 Degrees. Thread Internal - Tap: M4x0.7 mm. Length Thread: 3.5 mm. Diameter Ball: 7 Part No. Ball Only: MBUB-070-FC-DS Rating Load: 2,585 lbs.
