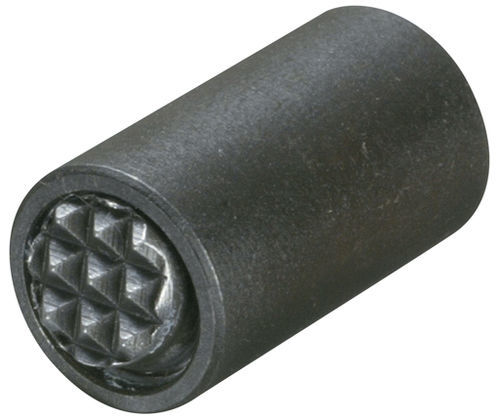

Self-aligning pad MBBU-1012-S

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable serrated ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Diameter Overall: 10 mm. Length Body: 10.5 mm. Diameter Contact Surface: 6 mm. Standoff : 1.5 mm. Degree Swivel: 28 Degrees. Thread Internal - Tap: M4x0.7 Length Thread: 3.5 mm. Diameter Ball: 7 mm. Part No. Ball Only: MBUB-070-S Pattern Tooth: SF Rating Load: 2,585 lbs.
