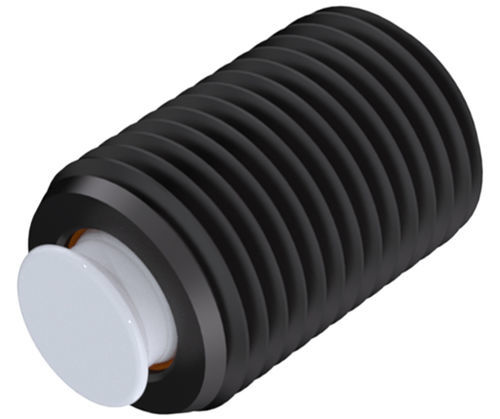

Self-aligning pad MTBU-10025-DC

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Thread External: M10x1.5 Length Thread: 25 mm. Diameter Contact Surface: 6 mm. Height Standoff: 1.5 mm. Swivel : 28 Degrees. Hex Internal - Flat: 5 mm. Diameter Ball: 5 mm. Part No. Ball
