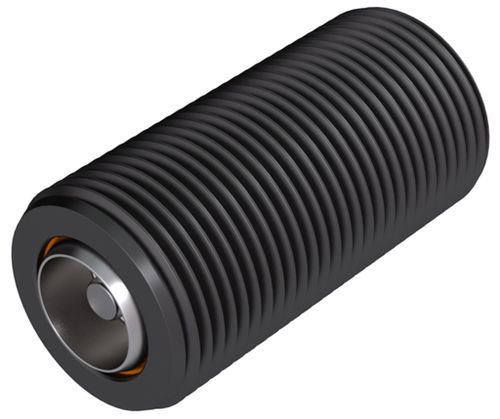

Self-aligning pad MTBU-20030

The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter. Thread External: M20x2.5 mm. Length Thread: 30 mm. Hex Internal - Flat: 10 mm. Swivel : 20 Degrees. Standoff : 4 mm. Standoff : 6 mm. Diameter Ball: 13 mm. Diameter Replaceable Pad: 10 mm. Rating Load: 8,379 lbs.
