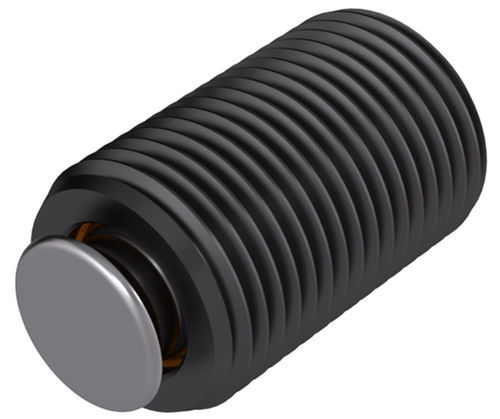

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement.
The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from 300 series stainless steel. Replacement balls and O-rings can be ordered separately.
Thread External: 3/8-16
Length Thread: 1/2 in.
Diameter Contact Surface: .236 in.
Height Standoff: .063 in.
Swivel : 28 Degrees.
Hex Internal - Flat: 3/16 in.
Diameter Ball: 3/16 in.
Part No. Ball Only: BUB-187-FC
Load Rating: 1,763 lbs.
