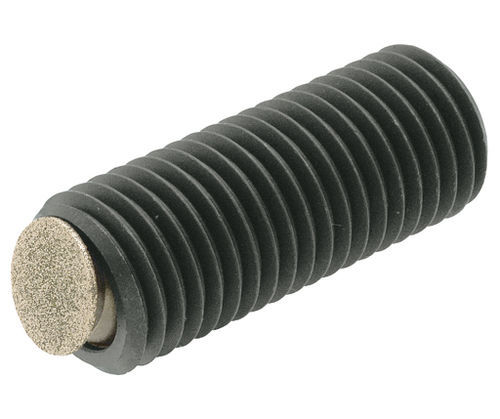

Self-aligning pad MTBU-10025-FC-DS

The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately. Thread External: M10x1.5 mm. Length Thread: 25 mm. Diameter Contact Surface: 6 mm. Standoff : 1.5 mm. Swivel : 28 Degrees. Hex Internal - Flat: 5 mm. Diameter Ball: 5 mm. Part No. Ball Only: MBUB-050-FC-DS Rating Load: — lbs.
