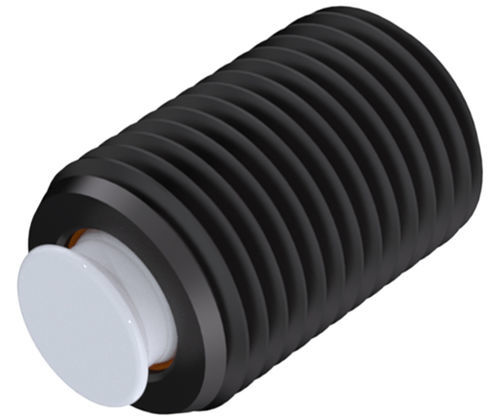

Self-aligning pad TBU-0370-DC

The replaceable ball swivels to allow for self-alignment on uneven surfaces. The flat cone design provides a large contact surface for greater force distribution. The replaceable ball is made from non-marring white delrin. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. Replacement balls and O-rings can be ordered separately. Thread External: 3/8-16 Length Thread: 1/2 in. Diameter Contact Surface: .236 in. Height Standoff: .063 in. Swivel : 28 Degrees. Hex Internal - Flat: 3/16 in. Diameter Ball: 3/16 in. Part No. Ball Only: BUB-187-DC
