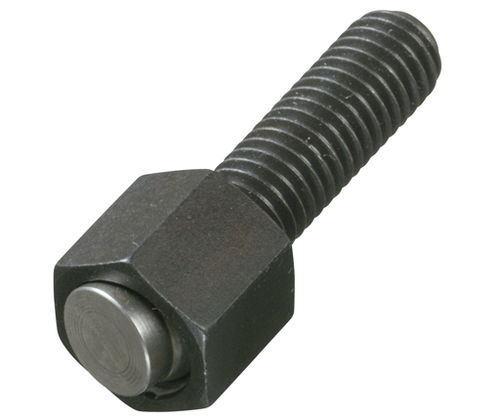

Self-aligning pad BUH-0124-F

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately. Hex External - Flat: 3/8 in. Height Head: 1/4 in. Length Thread: 1/2 in. Diameter Contact Surface: 5/32 in. Standoff : 1/16 in. Thread External: #10-24 Swivel : 28 Degrees. Hex Internal: — in. Diameter Ball: 3/16 in. Part No. Ball Only: BUB-187-F Rating Load: 1,176 lbs.
