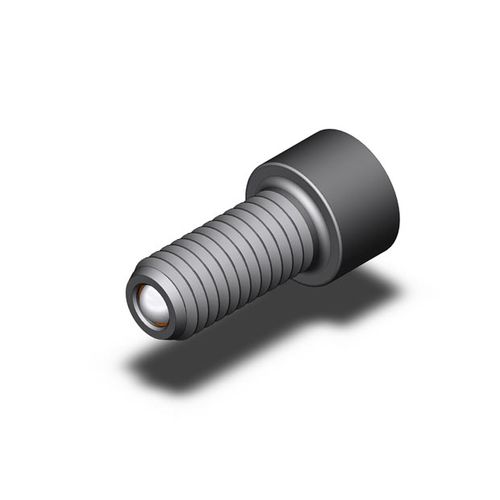

Thrust screw TSH-0310-SBcylindrical headhex socketstainless steel
Add to favorites
Compare this product
Characteristics
- Applications
- thrust
- Head
- cylindrical head
- Drive type
- hex socket
- Materials
- stainless steel
- Other characteristics
- swiveling ball
- Diameter
Max.: 1 in
Min.: 0.31 in
- Length
Max.: 4 in
Min.: 0.75 in
Description
These thrust screw assemblies allow straight line static load thrust without transmitting torsional or radial force on to the contact area. The free floating ball design allows the thrust screw to continue to rotate while the ball remains stationary against the contact surface. Ideal for irregular shaped or contoured applications.
The housing is made from alloy steel, heat treated to Rc 43/46 with a black oxide finish. The replaceable ball is held in place with a viton O-ring which keeps contaminants out and allows the ball to swivel. The ball is made from 440c stainless steel and heat treated to Rc 58/62. Replacement balls and O-rings can be ordered separately.
