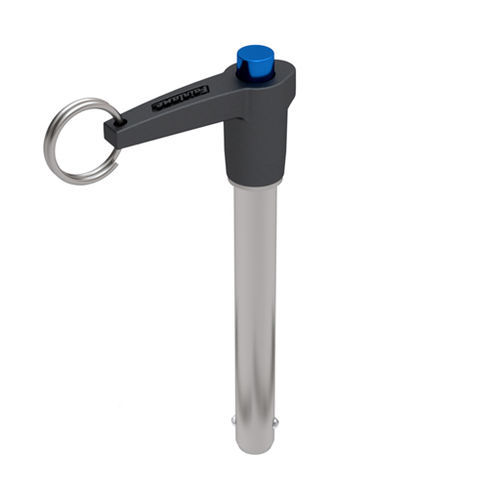

Quick-release pin with button LACH series

with L handlewith lifting ring

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The handles are made from 380 die cast aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Diameter Nominal: 3/16 in. Diameter Shaft - Max: 0.1885 in. Diameter Shaft - Min: 0.1870 in. Length Grip: 0.50 in. Width at Balls: 0.220 in. Length to top of Balls: 0.260 in. Height Head: 1.23 in. Diameter Base of Handle: 0.47 in. Height Base of Handle: 0.77 in. Diameter Button: 0.23 in. Length Handle: 1.73 in.
