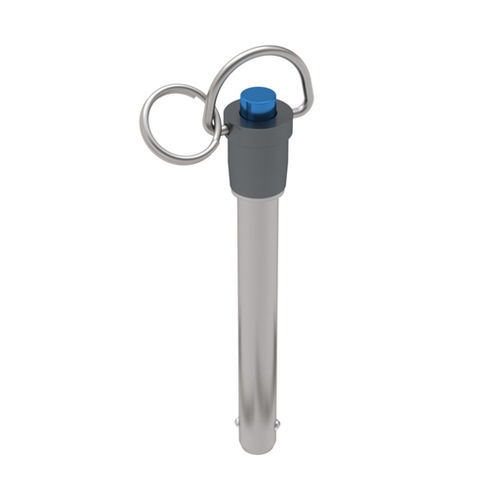

Quick-release pin with button RACS series

with lifting ringstainless steel

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 300 series stainless steel. The 300 series stainless steel is not recommended in application where shear forces are a factor. The handles are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Diameter Nominal: 1/4 in. Diameter Shaft - Max: 0.2485 in. Diameter Shaft - Min: 0.247 in. Length Grip: 0.5 in. Width at Balls: 0.289 in. Length to top of Balls: 0.29 in. Height Handle: 0.92 in. Diameter Base of Handle: 0.47 in. Diameter Button: 0.23 in. Diameter Handle - Rim: 0.59 in. Height Handle And Ring (Extended): 1.45 in. Width Ring: 1.16 in.
