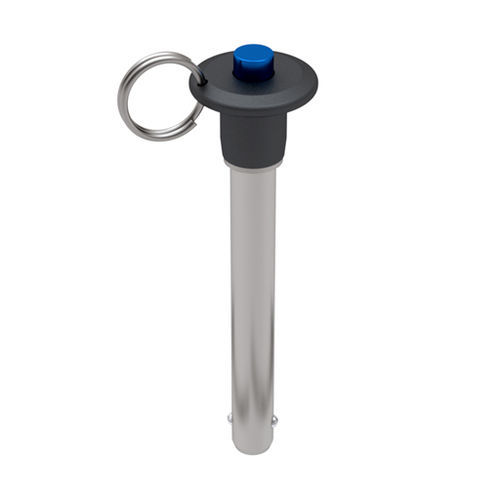

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole.
The shanks are made from 300 series stainless steel. The 300 series stainless steel is not recommended in application where shear forces are a factor. The handles are made from 2024-T4 aluminum and anodized black. The pins are supplied with a stainless steel split ring for attaching a cable assembly or lanyard. Pins in other grip lengths are available as special orders.
Diameter Nominal: 1/4 in.
Diameter Shaft - Max: 0.2485 in.
Diameter Shaft - Min: 0.247 in.
Length Grip: 0.5 in.
Diameter at Balls: 0.289 in.
Length to top of Balls: 0.29 in.
Length Head: 0.92 in.
Width Shoulder: 0.47 in.
Length Head Below Rim: 0.63 in.
Diameter Button: 0.23 in.
Width Overall: 0.81 in.
