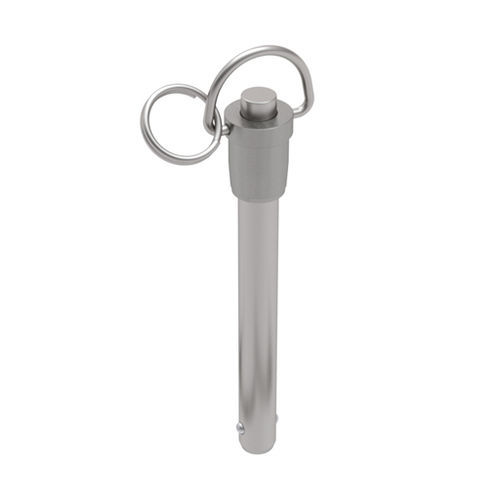

Quick-release pin with button RCCH series

with lifting ringstainless steel

These positive locking quick release pins have a wide range of applications in fastening, locating, and alignment applications. The pins will not release until the button on the handle is depressed. Once the button is depressed, the balls retract into the shank allowing the pin to be inserted or removed into or out of a hole. The shanks are made from 17-4 stainless steel. The handles and actuator buttons are made from 303 stainless steel. The pins are supplied with a stainless steel split ring for attaching a cable assembly. Pins in other grip lengths are available as special orders. Diameter Nominal: 3/16 in. Diameter Shaft - Max: 0.1885 in. Diameter Shaft - Min: 0.1870 in. Length Grip: 0.50 in. Width at Balls: 0.220 in. Length to top of Balls: 0.260 in. Height Handle: 0.91 in. Diameter Base of Handle: 0.47 in. Diameter Button: 0.23 in. Diameter Handle - Rim: 0.59 in. Height Handle And Ring (Extended): 1.45 in. Width Ring: 1.16 in.
