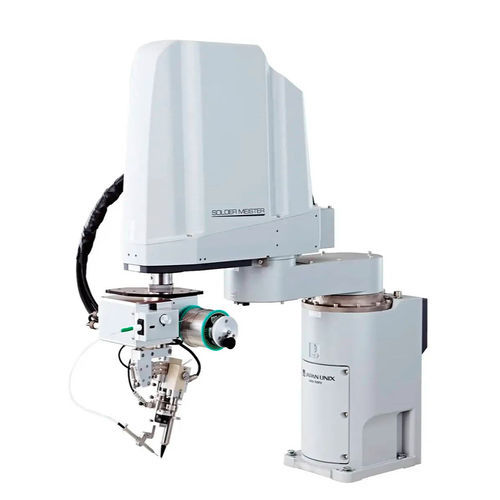

Robotic soldering machine UNIX-HFR

laserhorizontallinear

・Robot type – SCARA type ・Number of axes – 5-axes ・Optimum methods – Iron tips, Laser ・Preferred work type – Point soldering, Linear Soldering Supports massive production with fast circular motion The 5-axis SCARA soldering inline machine, UNIX-HFR features a fast maximum speed of 7,128 mm/sec with high repeatability, accuracy and rigidity. The UNIX-HFR features an adjustable stroke length of 350 mm, 450 mm, and 550 mm. This soldering inline machine is suitable for the laser soldering and contact soldering which can be applied with various soldering module. The SCARA type soldering robot can satisfy the mass manufacturing with fast robotic motion. Onboard controller Controls robot and soldering operation. High Precision solder feeder Easy to change solder reel. Iron tip cleaner Air blower type Heater and temperature regulator for robotics Special heater and temp. regulator with CA sensor Soldering head Easy to replace tips and heater within 1 minute. Teaching pendant Easy control and configuration New Generation of Horizontal Multiple-joint Soldering Robot for the Era of Full Automation Enhanced communication network function for output and storage of soldering-related data, and comprehensive software that can be used regardless of operator skill. Of course, it is also compatible with SolderingManager for enhanced traceability. The new robot is designed to be more manpower-saving and easier to use. Supports laser soldering as well as soldering with an iron.
