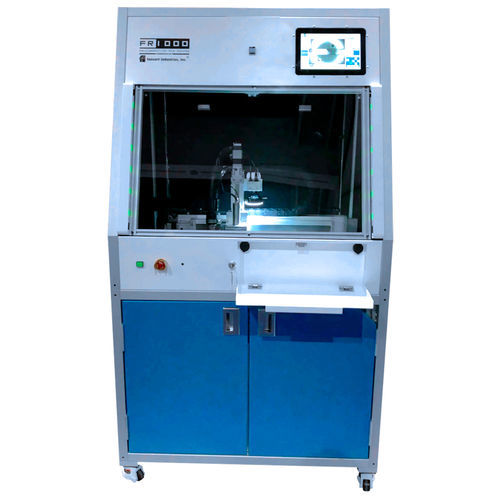

PCB router FR-1000

FR-1000 Batch Router Fancort's FR-1000 stand-alone was specially designed as a low cost solution to meet medium volume PCB depaneling requirements. Capable of processing boards up to 450mm x 450mm and up to 3 mm thick. • Quick release for fast bit changeover. • Safety light curtain across the load/unload zone. • Powerful gantry system. • Small overall footprint. • Vac filtering for ultra clean operation. - High accuracy/powerful 3-axis gantry robot. - Large panel size: 450mm x 450mm. - Configuration: X, Y, & Z axis. - Repeatability: ±0.02mm. - Spindle Motor: 350 Watt High Power Spindle. - Power: 1.0 KW vacuum blower with HEPA filter. - Touch Screen & Teach Pendant for easy programming. • High accuracy machine structure. • Easy vision jog and teach programming. • Vac filtering for ultra-clean operation. • Quick bit release mechanism. • Small Foot Print (40”x40”) • Full steel interlocked enclosure for noise, dust, and operator safety. • Safety light curtain across the load/unload zone.
