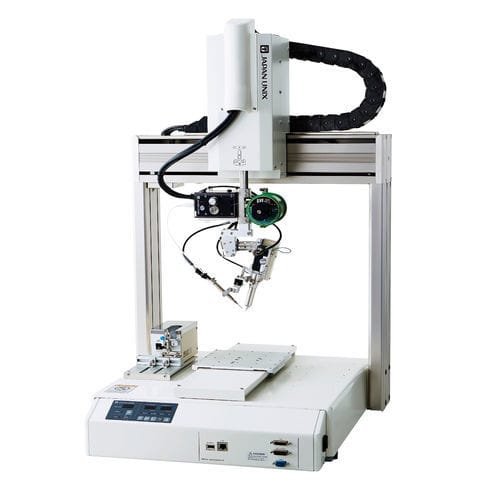

Robotic soldering machine UNIX-DF304S

laserautomatedfor PCB

The new generation desktop robotic soldering for Industry 4.0 and IoT. UNIX-DF Series have improved its network function and robotic motion. Three types, according to PCB size. These are also applicable and optimized for laser soldering. The automated robotic soldering can connect with network, which can visualize each soldering process and result. The additional two axes facilitate penetration angles or rotate PCB, which make difficult soldering component possible from now on. • New heater improves heating and soldering mechanism. • Productivity is highly improved by increasing rigidity and process speed. • Connect with network and visualize the soldering operation process in real time. • Two additional axes enables complex PCB and components soldering easily. • Fully correspondent to laser soldering system. Fancort Robotic Soldering Vision Systems – Fancort offers a full range of vision systems specialized to make the robotic soldering process easier to program, reliable and productive. Our team of automation engineers developed three types of visions systems for robot programming, fiducial correction, and multi-task (AOI/inspection, fiducial, pattern match, poke yoke, and measurement). Fancort Teaching Aid – The Fancort Teaching Aid system produces a magnified high resolution image which improves operator visualization and solder joint process development. • Magnified Teaching View • Fiducial Correction • Machine Document Storage • Process Camera Image/Video Capture • Remote Tech Support
