Solder feeder UPM-023

automatedhandlewire

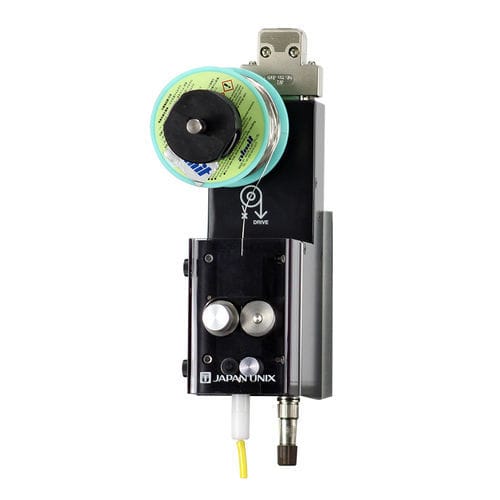

The UPM-023 Soldering Feeder from Japan Unix is an advanced, automated solder wire feeder designed for precision and efficiency in soldering tasks. It is particularly suitable for micro soldering applications, such as high-density circuit boards and small electronic components. Key features of the UPM-023 include: High Precision Feeding: The feeder is capable of managing ultrafine solder wire, with a resolution of 0.072 mm per pulse, making it ideal for tasks that require high precision. Wire Compatibility: It can handle solder wire diameters ranging from 0.3 mm to 1.2 mm, accommodating a variety of soldering needs​. Error Detection: The UPM-023 is equipped with an encoder for detecting feeding issues such as slipping or jamming, ensuring consistent and reliable operation. Automated Control: It integrates seamlessly with Japan Unix's soldering controllers, such as the USP5, to provide precise control over the amount and speed of solder wire fed during the soldering process​.
