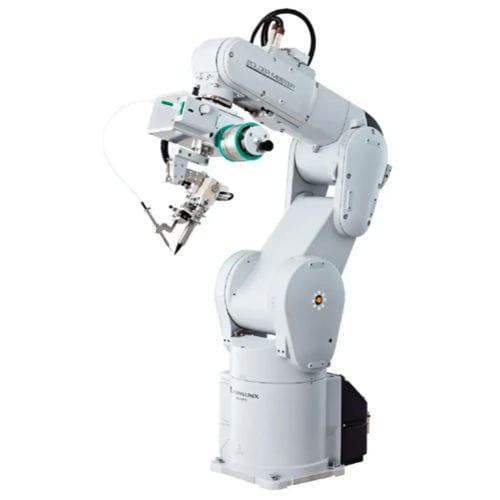

Automated soldering machine UNIX-700

high-speedinlinevertical

The ultimate inline soldering robot: UNIX-700 The world-best soldering robot for inline with an AC servo motor. SOLDER MEISTER 700 Series, top-class model were developed in order to achieve soldering automation for mass production. It solves a variety of automated production issues with its flexible multi-axis joints. Various applications can also be additional for automation and soldering problems. The series have achieved high speed, accuracy and quality, which are able to automate even difficult soldering application samples. Here is the ultimate soldering robot, which will solve your issues. Vertical inline soldering robot, UNIX-700FV is an ideal for irregularly shaped works into which is hard to insert the tip. The vertical multi-joint is utilized to freely change the head angle and quick operation. A high speed of 5,300 mm/sec, repeat accuracy and high rigidity. Automating difficult soldering applications is attainable with this ultimate inline soldering robot. Standard configuration for contact soldering Onboard controller Controls robot and soldering operation. High Precision solder feeder Easy to change solder reel. Iron tip cleaner Air blower type Heater and temperature regulator for robotics Special heater and temp. regulator with CA sensor Soldering head Easy to replace tips and heater within 1 minute. Teaching pendant Easy control and configuration The 5-axis SCARA soldering robot for inline, UNIX-700FH features a fast maximum speed of 7,128 mm/sec with high repeatability, accuracy and rigidity. The 700FH features an adjustable stroke length of 350 mm, 450 mm, and 550 mm.
