Visual guidance vision system

for robotsindustrialcompact

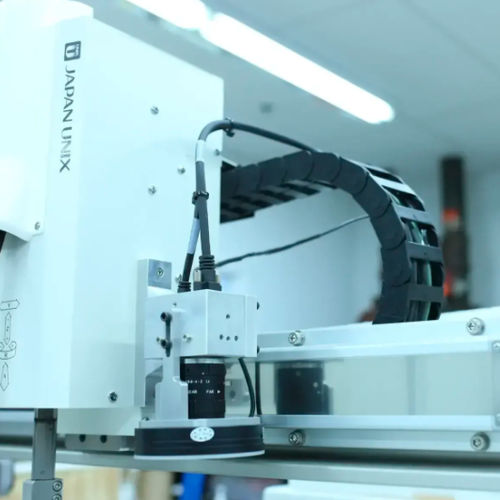

Fancort offers a full range of vision systems specialized to make the robotic soldering process easier to program, reliable and productive. Our team of automation engineers developed three types of visions systems for robot programming, fiducial correction, and multi-task (AOI/inspection, fiducial, pattern match, poke yoke, and measurement). FANCORT TEACHING AID The Fancort Teaching Aid system produces a magnified high resolution image which improves operator visualization and solder joint process development. FANCORT FIDUCIAL CORRECTION SYSTEM The Teaching Aid system hardware and software is easily upgraded to our Fancort Fiducial Correction System with the addition of a machine vision camera to the side of the robot (pictured above). This camera allows for the operator to train the robot to offset the robot program to correct for positional variance of the solder components. It also offers image/video capture, machine file storage, and remote session tech support capable. FANCORT MAX MACHINE VISION The Fancort Max Machine Vision is a customized stand alone system based on world leading Keyence Vision technology capable of many types of inspection and fiducial correction. This system has many software capabilities but is best suited when dedicated to one task in a given process. Each system comes fully integrated and mounted to your Japan Unix robot of choice. Magnified Teaching View Fiducial Correction Machine Document Storage Process Camera Image/Video Capture Remote Tech Support
