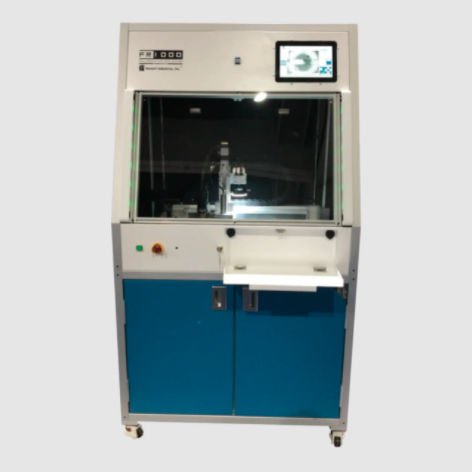

Automatic router FR-1000

XYZhigh-speedpneumatic

Introducing Fancort's FR-1000 stand alone collaborative ready PCB router machine, specially designed as a low cost solution to meet medium volume PCB depaneling requirements with a machine that provides the mechanical properties necessary for reliable accurate depaneling. The FR-1000 is capable of depaneling boards up to 450mm x 450mm and up to 3 mm thick. Large panel size: 450mm x 450mm. Powerful gantry system. Easy vision jog and teach programming. Small overall footprint. Vac filtering for ultra clean operation. Fiducial mark vision alignment. Vision based bar code and pattern recognition program selection. Manufactured in the USA/NJ by Fancort Industries, backed with one year warranty. Quick release for fast bit changeover. Fixture comes standard equipped as a universal fixture but can also easily accept dedicated tooling for fast change over for mixed environments. Optional pneumatic automatic door to help input and output of the material either by a collaborative robot or by the operator. Manipulator Configuration: X, Y, & Z axis. Manipulator Repeatability: ±0.02mm. Routing Capability Non routing speed: 800 mm/s. Routing speed: up to 25mm/s max depending on material, cutting quality and tool diameter. Repeatability: <±0.02mm straight lines, curves & interpolated profiles. Workstation Panel Location: Adjustable fixture with ability to add dedicated fixture plates. Loading: Manual or Collaborative Robot Loading. Panel Size: 450mm x 450mm Panel Thickness: 0.5 mm – 3.0 mm. Spindle System Spindle Motor: 350 Watt High Power Spindle. Max Speed: 60,000 rpm. Tool Change: Manual tool change. Router Bit: Shank size 3.175 mm (1/8”).
