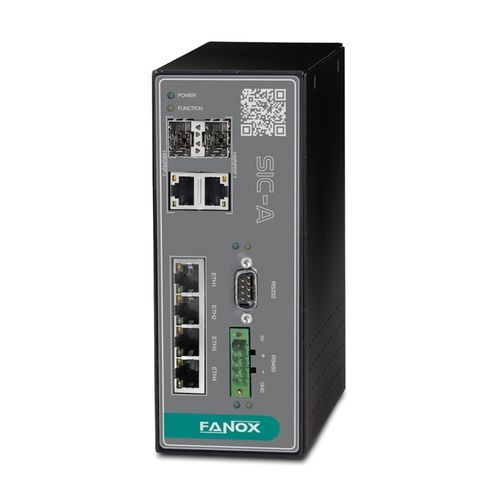

Communication gateway SIC-A

EthernetserialModbus

Redundancy Protocols Gateway (PRP/HSR) Communication Solutions for Smart Grid Supported protocols: IEC 61850, IEC 60870-5-101/103/104, DNP3 serial/TCP, Modbus RTU/ASCII/TCP, IEC 62056 – DLMS, IEC 61400, … Multifunction: Redbox SIC-A Working as a Redbox allows the connection of HSR networks with traditional ones. In case of PRP redundancy, SIC-A is not denominated Redbox, it would be a device that allows the integration into 2 independent networks through a 3rd Ethernet port. Protocol Gateway SIC-A device is able of communicating through serial communication RS-232 or RS-485 with multiple equipment with a Master serial protocol (Modbus, IEC69870-5-101, IEC60870-5-103, DLMS…) and dispose the information into a Ethernet protocol as IEC 61850 or IEC 60870-5-104. This way, devices with conventional protocols can be integrated in Ethernet networks with advanced protocols. Redundant Protocol Gateway It is the result of the combination of the functionality of a Gateway and the HSR redundancy. With this configuration, SIC-A allows the integration of equipment with serial communications in a HSR redundant network with an advanced protocol as IEC 61850 or IEC 60870-5-104 Most complete topology 2 SIC-A in their topology of Redbox allow connecting a HSR redundant network with another PRP network. This is a useful application that permits to coexist new networks with existing ones. In the same way, SIC-A in its topology of PRP Gateway, would allow to integrate serial equipment with conventional protocols in a PRP network with an advanced Ethernet protocol as IEC61850, IEC 60870-5-104, etc.
