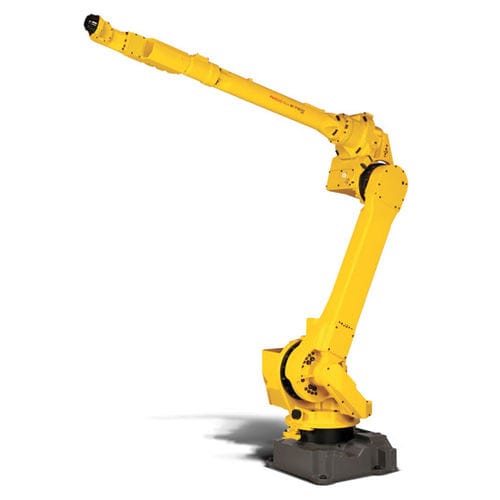

Articulated robot M-710iC/12L
6-axispackagingfloor-mounted

articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
packaging
Mounting
floor-mounted, ceiling-mounted, wall-mounted
Application domain
for the food industry, for the automotive industry
Protection level
IP54, IP67
Other characteristics
waterproof
Payload

12 kg
(26.455 lb)

Reach

3,123 mm
(122.95 in)

Repeatability

0.09 mm
(0.0035 in)

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

71 dB

Weight

540 kg
(1,190.5 lb)

Description

This new small to medium payload 6-axis model is ideal for all applications to handle medium payloads for up to 12 kg. With the smallest payload capacity in the M-710 series, it has extended, long arm reach (3.1 m), making it the perfect choice for sealing applications when working on car body interiors or other hard to reach areas. Highlights IP67 wrist protection as standard Thanks to its dust and waterproof wrist, this model is ideal for entering harsh environments. Infinite possibilities Get even more out of your industrial robot with tailor-made FANUC accessories and software options such as the SpotTool, iRVision or Dual Check Safety (DCS) software. Make your robot smarter and capable of self-improving productivity using the unique Learning Vibration Control. Infinite possibilities Optional IP67 protection for the robot's body Opt for full cover IP67 protection to environmental standards for dust and waterproof operation. The flexible solution for the automobile industry With its long reach this model is ideal for car body sealing. Second food option available Food packaging: second food option with food-grade grease in the wrist and epoxy paint.
