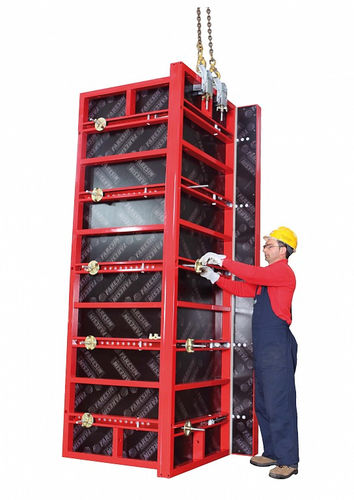

Column formwork Poker

FORMWORK FOR STEEL PILLARS Modular formwork that allows pillars of various sizes to be built using very few accessories. Available in the Poker 75, 100 and Poker View versions withS100 and S120 profile. POKER COLUMN FORMWORK P100: POKER 75-POKER 100 Columns with with various dimensions can be shuttered using this steel formwork together with a minimal number of accessories. moreover, the poker formwork can be used both as a traditional formwork, if assembled with the aligner clamp to the traditional module 3000/S100 for the construction of vertical walls, and as an edge formwork. Poker 75 can be used to construct square columns ranging from 15×15 cm to 60×60 cm. Poker 100 can be used to construct square columns ranging from 20×20 cm to 85×85 cm. POKER COLUMN FORMWORK P120: POKER 75 – POKER 100 Poker 100 with a 120 mm depth profile, allow the adjustable of square columns starting from 20×20 cm till a maximun size of 85×85 cm. The formwork can be also use as wall formwork or stop-end panel. The steel colum P120 Poker 75 can be used to build columns with a section variable from 15×15 cm to 60×60 cm. The box profile of 120 mm ensures performance standards at the highest level.
