Facade scaffolding tower TF2

modular

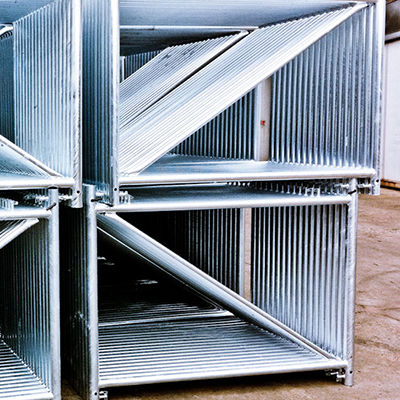

TF2 Shoring Towers, 100% compatible with Doka D2 Tower System, are made of strong frames in three heights 1.80 m 1.20 m and 0.90 m and are suitable for many application: – high-rise building – industrial construction site – bridge-building – every kind of project with big hights Frames are hot dip galvanized steel, lightweight and easy handling, the base-pitch of 1.52 m ensures an high stability. High load capacity up to 60 kN on each leg. The head and foot screw jack allow a precision and a fast handling of tables. Possible pitches between the frames: 50, 100, 125, 152, 175, 200, 225, 250 cm. Frame width: 152 cm The spacing of the frames can be adapted using the right length of diagonal brace, so to guarantee the required loading capacity. TF 2 Shoring Towers accomplish to “heavy” tasks with a safe, strong and flexible system. Considerable loads, challenging heights, huge areas are the main working fields of TF 2 shoring system; used as simple shoring or as a table system, it ensure a fast, safe and economical formwork solution. Any TF 2 components are made by hot deep galvanized high quality steel, ensuring the system high loadability and a long life span. STANDARD GRID 3 Frame sizes, 0,90 / 1,20 / 1,80 m, related horizontal and diagonal braces, and few system connectors compose a stable, heavy duty, easy to use and safe load bearing tower. System modularity permit an high optimization with the consequent economical and time sparing advantages. HIGH WORK LOADS Almost any slab thickness can be supported by TF 2 Shoring Towers; system loadability reaching up to 60 kN per leg (wich minds 60x4= 240 kN x tower) will accomplish to any structures geometry.
