Thickness measuring system opticalfor wafersfor industrial applications
Add to favorites
Compare this product
Characteristics
- Measured physical value
- thickness
- Technology
- optical
- Measured material
- for wafers
- Applications
- for industrial applications, for electronics
- Other characteristics
- high-precision, high-speed, 2-axis
Description

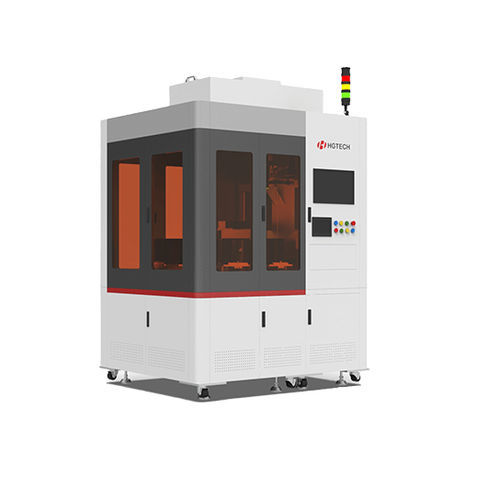

Facing the raw material production enterprises in the upstream of the semiconductor industry chain, the independently developed spectral confocal measurement system is used to detect the size and flatness of semiconductor raw and epitaxial wafers.
Product advantages:
Wide application range
Used for 4-8 inch original wafer, substrate and epitaxial wafer of various materials and polishing conditions
High measurement accuracy
Thickness range: 0-1mm measurement accuracy: ± 1 μ M repetition accuracy: 0.2 μ m
Short measurement time
Measurement time: 30s / PCS (according to the customer's detection trajectory)
