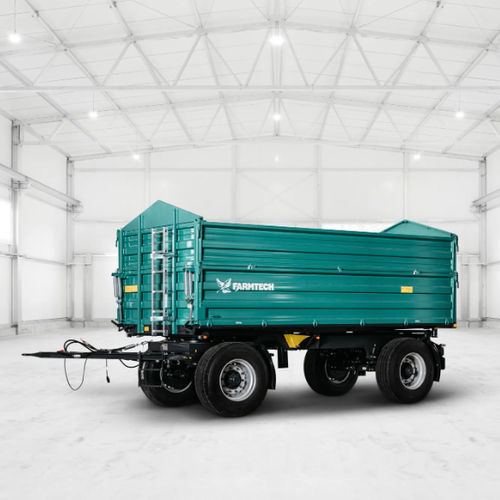

2-axle trailer ZDK 1500S

profileagriculturallifting

For maximum transport service under strict preconditions the ZDK double-axle tipping trailer is extremely suitable. The sturdy frame and the bridge frame are designed for high burdens and provide maximum torsional stiffness. The parabolic suspension and the wide track provide an even load on the axes on extremely fast drives. At the same the standard safety of the tipping is getting higher. The large palette of ZDK models offers with a load volume from 10 to 30 m3 for almost all agricultural goods an excellent transport solution. Optional equipment versions like hydraulic openings of the sidewalls or a side chute increase the operating comfort. Sturdy frame made from steel square tube 220 x 120 x 8 mm, trapezoidal tipping frame, parabolic springs, strong ball rim bearing 1100 mm, drawbar with height adjustment, preparation for trailer coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks Two heavy duty ADR-axles with 10-stud rims, track 1850 mm, axle load 11800 kg/axle at 25 km/h and 11000 kg/axle at 40 km/h, brake cam 406 x 120 mm Dual line air brake installation (selection according to country) The floor made of 4 mm steel plate, plugged corner stanchions, steel sideboards and extension boards (FUHRMANN profile) with quick shutters, swinging and collapsible boards opening, central locking lever (left-right- rear), grain release with lever, sideboard lifting springs (left and right with carrier), conical trailer box for easier unloading, extension triangles 400 mm (front and rear), access ladder according to accident prevention regulation (UW)
