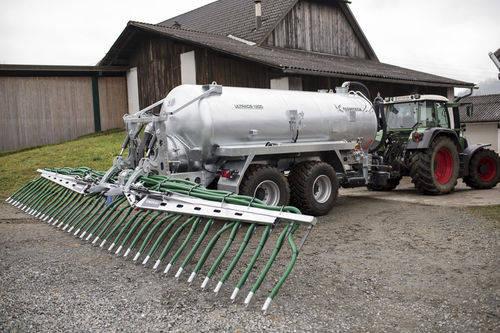

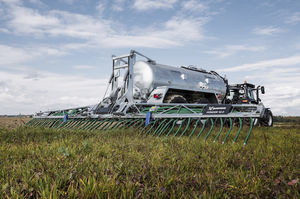

Suction tanker Ultracis 1200

single-axle

Designed to offer an alternative for farm operators who need extra slurry spreading capacity at peak times, but need to keep an eye on costs. Ultracis series have self-supporting galvanized tanks with baffles for maximum stability. The vehicle axle and drawbar are connected by two sturdy longitudinal reinforcements, which also carry all supply lines (air, oil, electricity) and protect them from mechanical damage. The drawbar height can be adjusted among several levels. By swivelling the drawbar, it can be switched from clevis to hitch coupling as a standard feature. Hydraulic drawbar suspension is available as an option. Fully galvanized châssis frame, drawbar with low hitch, drawbar eye D40, landing gears (with gear box, double speed, three-stages), road lighting system, hand brake, wheel chocks Heavy duty ADR-axIe with 10-stud rims, track 1950 mm, wheelbase 1480 mm, axle load 12000 kg/axle, brake cam 406 x 120 mm, steering axle Dual line air brake installation with ALB (sélection according to country) Fully galvanized barrel body with wall thickness 5 mm, a recess for wide tyres, integrated baffle, connections for suction and discharge lines with quick coupler, slurry shovel with hydraulic actuation, level indicator, dome valve and siphon with sight glass, manhole cover at the back, hose storage brackets left and right, manometer, safety valve secured to 0,5 bar JUROP PN 106 with overpressure safety valve, flow rate at atm. pressure 11000 l/min, max. overpressure 1.0 bar, power requirement 13,6 kW
