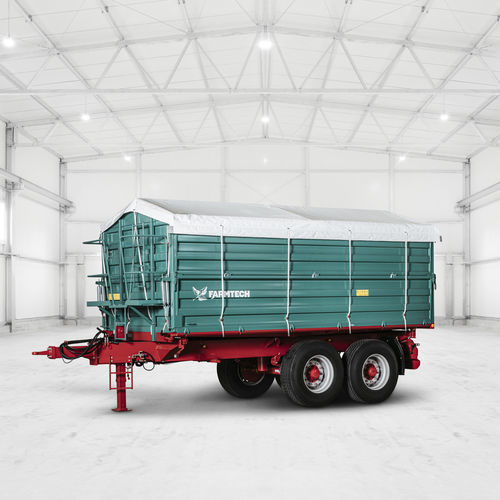

Equipment trailer TDK 1800

platformtandemfor cargo

To provide safe transport of high payloads on difficult terrain it requires the convincing features of our TDK three-side tandem trailer. Through its compact building method the driving unit enables high manoeuvrability and ensures above all maximal stability and safety when loading, discharging and driving. The especially low platform height, height-adjustable tow bar and efficient brakes provide the maximum driving comfort and safety at high speed. With its various equipment versions the TDK model is the best transport solution for beginners as well as experienced professionals. Sturdy frame made f rom steel square tube 300 x 100 x 6 mm, trapézoïdal tipping frame, tandem châssis with parabolic springs mounted below, high drawbar hitch with fixtowing eye D40 mm, landing gears (with gear box, double speed, three-stages), préparation for trai 1er coupling, underride guard with commercial LED road lighting system, rear socket, rear wall support, wheel chocks, equipment for the crâne Two heavy duty ADR-axIes with 8-stud rims, trackl750 mm, wheelbase 1010 mm, axle load 9000 kg/axle at 25 km/h and 8500 kg/axle at 40 km/h, brake cam 300 x 90 mm Dual line air brake installation (sélection according to country)
