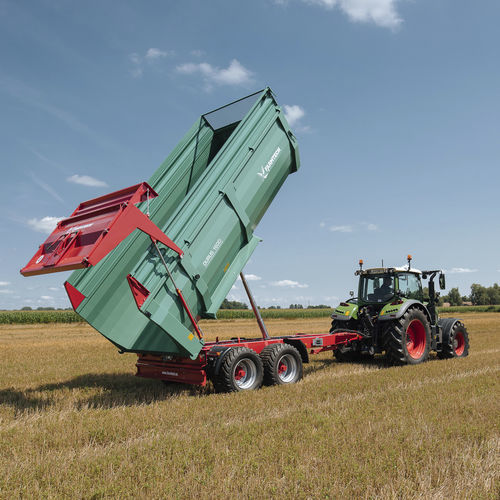

Dump trailer DURUS 1600

tandemfor cargowindow

The Durus dump tipper is perfect for transporting all agricultural goods, especially for silage, grain, wood chips and other loose bulk materials. The conical bridge ensures a very high elasticity of a rapid and complete emptying. Even heavy material such as sugar-beet, sand, gravel and mud are no hindrance for the Durus. The dump tipper is usable and guaranteed to work with highest thrift and offers maximum safety and efficiency through the entire year. Sturdy frame made f rom steel square tube 260 x 140 x 6,3 mm, tandem châssis with parabolic springs, high drawbar hitch with fix towing eye D40 mm, landing gears (with gear box, double speed, three-stages), préparation for trailer coupling, underride guard with commercial LED road lighting system, rear socket, wheel chocks Two heavy duty ADR-axIes with 10-stud rims, trackl850 mm, wheelbase 1200 mm, axle load 12000 kg/axle at 40 km/h, brake cam 406 x 120 mm Dual line air brake installation with ALB (sélection according to country) Conical dumper body made of steel plate (4 mm floor and 4 mm walls), hydraulic tailgate (with double-acting cylinders and hydraulic accumulator), grain release with lever, inspection window front, steel mud wings, access ladder according to accident prévention régulation (UW)
