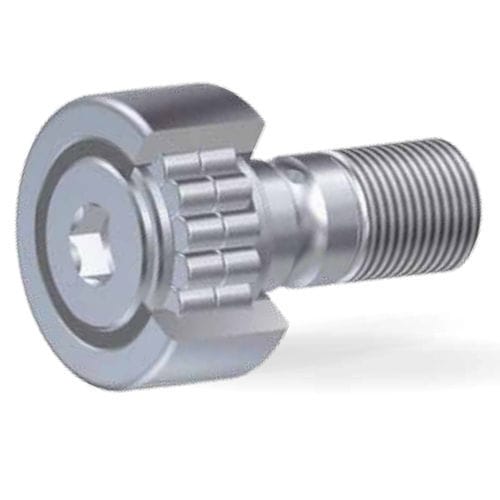

Axial cam follower 35

steel

The main feature of this series of rollers is the major thickness of the external ring, designed to support the high specific pressures and bumps which are typical in use of these bearings (e.g. cam followers and rollers). Other important features include: • Outer ring with double roller seal border, entirely machined in and accurately ground to adapt the bearing for supporting loads including axial components. • The ring normally has a crowning on the outside to improve functioning conditions in the presence of heavy loads and to eleminate load concentration on the sides of the track. • Rings with parallel outer surfaces can be supplied on request. • Journal with threaded shank, a machined in roller guide edge and tempered rolling track. On the front part there is a seat for Allen keys or, on request a slit for a screwdriver. • Steel seal plates assembled by shrinkage on the outer ring to form a secure system of labyrinth protection. • Full packing of parallel rollers with ground flat heads. • Channels and lubrication holes in the pin. • Normal class manufacturing tolerance with possibility of special precision as per class P5 (DIN620).
