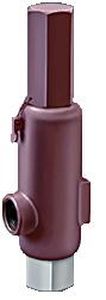

Plug safety valve 2700

Series 2700 ASME NB Certified: Air, Steam & Water European CE Approved Sizes 1/2%u2033 X 1%u2033 to 1-1/2%u2033 X 2-1/2%u2033. Effective orifice areas from 0.068 to 0.573 square inches. Pressures from 15 to 6500 psig. Temperature range of -450° F to +750° F. Stainless steel body and trim with carbon steel bonnet. Optional materials of construction include complete 316 stainless steel, Monel, and Hastelloy C. Materials suitable for NACE service available. Available with threaded, flanged, socket weld, welding nipple or sanitary connections. Optional O-ring seat for ultimate tightness. Maximum blow down of 10% to 20% on all fluids. Balanced design available in %u201CC%u201D and %u201CD%u201D orifices which nullify effects of backpressure. Applications: air, gas, vapor, and liquid process service. Series T6000 Series
