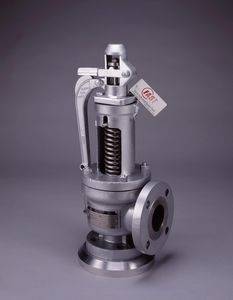

Steam safety valve 6400, 6600
Add to favorites
Compare this product
Characteristics
- Fluid
- for steam
- Controlled pressure
Min.: 15 psi
Max.: 1,500 psi
- DN
Min.: 1 in
Max.: 6 in
Description
Series 6400/6600
ASME NB Certifi ed: Steam & Air
Sizes 1�� X 2�� to 4�� X 6��. Actual orifi ce areas from 0.150 to 7.087 square
inches. Pressures from 15 to 1500 psig. Temperature range from -20�‹ F
to +1000�‹ F. Steel body and bonnet with stainless steel trim.
Double blow down ring design meets the requirements of Section I of
ASME Code. Temperature equalizing disc for maximum seat tightness. Available
with exposed spring (6400) or closed bonnet (6600). Full nozzle design
for ease of maintenance.
Applications: steam boilers (6400) and organic fl uid vaporizers or hot water
boilers (6600).
