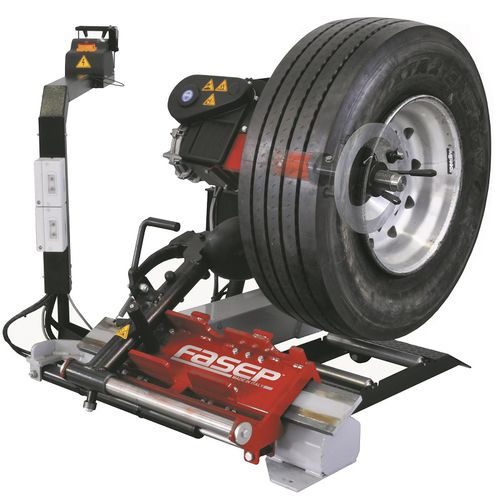

Truck tire changer RGU264E

for busesautomatichorizontal

Universal truck tire Changer (commercial) is a low cost unit, designed for fleets (where tire service is in-house) with different type of tires (tubeless, tube) and with a small number of handled tires daily. Technical Features - Automatic Truck Tyre Changer for fleets of Trucks and Buses - Suitable for normal and tubeless tires - Wheel locking system by flange and cones - 1 speed Motor - Clockwise and anticlockwise rotation of the chuck - Roller tool for mounting / demounting - Hidraulic lifting of chuck up-down - Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead. - Toolhead with manual lifting and rotation - Remote control on swing arm - Mobile ramp with rollers for easy positioning of the wheel - Hydraulic pump motor 1,1 kW (1,5 Hp) - Safety valve on hydraulic circuit - Chuck Gearbox motor 1,5 kW (2,0 Hp) - Bead breaking force (in/out) 18.3 kN - Max rotation torque 2,2 Kn - Rim central hole min 95 mm - Max wheel weight 1500 kg - Rim max diam. 14-26" - Max wheel diam 1200 mm (47") - Max wheel width 780 mm (30,5") - Noise < 70 dB (A)
