Truck-mounted crane F545RA xe-dynamic series
swing-armfor constructionfor heavy-duty applications

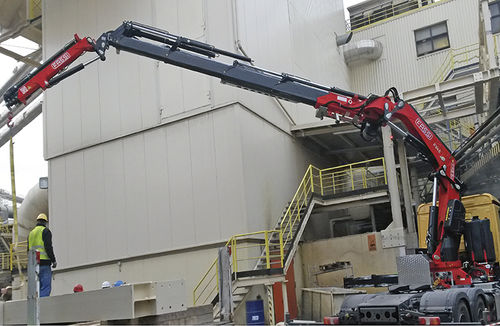

Truck-mounted crane - F545RA xe-dynamic series - Fassi gru S.p.A - swing-arm / for construction / for heavy-duty applications
Truck-mounted crane - F545RA xe-dynamic series - Fassi gru S.p.A - swing-arm / for construction / for heavy-duty applications
Truck-mounted crane - F545RA xe-dynamic series - Fassi gru S.p.A - swing-arm / for construction / for heavy-duty applications - image - 2
Add to favorites
Compare this product


Characteristics

Configuration
truck-mounted
Structure
swing-arm
Operating environment
for construction
Applications
for heavy-duty applications
Engine type
with combustion engine
Number of axles
3-axle, 4-axle
Other characteristics
hydraulic, radio-controlled
Lift capacity

53,000 kg
(116,845 lb)

Horizontal reach

28.55 m
(93'08" )

Width (base)

2,480 mm, 2,485 mm, 2,515 mm, 2,530 mm, 2,535 mm
(98 in, 98 in, 99 in, 100 in, 100 in)

Total weight

Max.: 6,550 kg
(14,440 lb)

Min.: 4,350 kg
(9,590 lb)

Description

FX500 control unit D850 digital distributor bank ADC automatic dynamic control flow sharing Dynamic version (.2): with linkage XP device Prolink system with double linkage continuous rotation on a slew ring Fassi has revolutionised the traditional idea of heavy-weight knuckle boom crane, to be installed on 3 or 4-axle trucks. These cranes stand out for their ability to combine exceptional lifting performance with a machine body that reduces structural dimensions to a minimum and aims at limiting tare weight. This is possible thanks to the use of special materials, first among which are the extremely high elasticity steels which, while they ensure formidable levels of resistance, also make it possible to optimise weight. This is why Fassi is able to offer a crane “without compromise”. Naturally, particular care is given to reliability, although this has to be reconciled with dynamics, which are an integral part of the very concept of hydraulic cranes.
