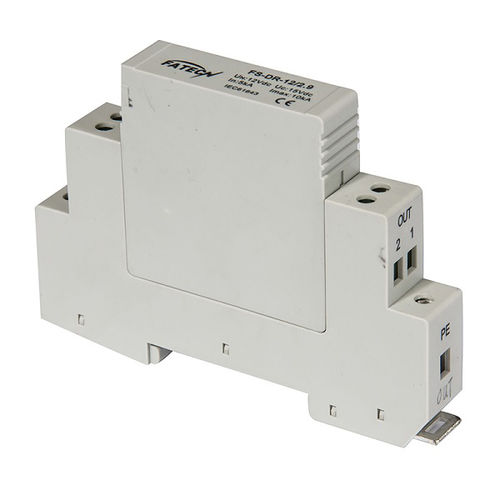

Type 3 surge arrester FS-DR-30/7.0bipolarDCDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- type 3
- Other characteristics
- bipolar, DC, DIN rail
- Voltage
24.5 V, 30 V, 34.8 V
- Primary current
1 A, 5,000 A, 10,000 A
Description
- Din rail RS485 datasurge arresters are applied to control signal double wire circuit in LPZ0 to LPZ3, e.g. 4~20mA circuit, RS485 circuit, RS422 circuit, gas detector, car-park system, CCTV remote monitor, remote control circuits.
- Common and difference surge protection mode, excellent performance.
- The pluggable module allows a fast replacement in case of fail.
- The grounding is realized through an earthing-clip on the DIN-Rail and / or earthing – clamp.
- No limiting in operating current due to parallel connecting method.
- Mounting on 35mm Rail, small space.
