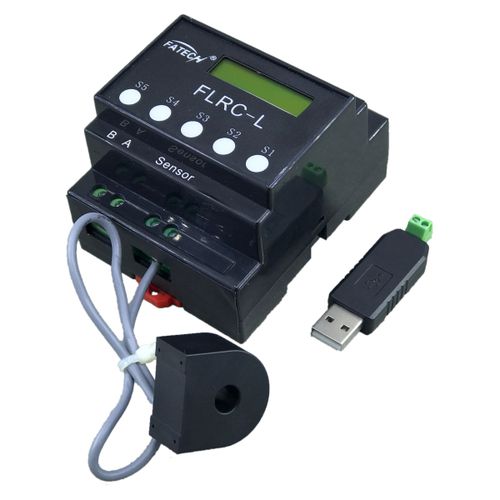

Lightning surge counter FLRC-L/II

digitalelectronicRS485

- The RS485 communcation lightning counteris built with time clock function - Can register 0~225 of lightning strikes, the data won’t be lost in case of power failure. - Can check the real time (year/month/day/hour/minute/second) of each lightning strike - Number counting repetition up to 1 million times. - With RS485 communication function, could be communicate with PC. - the counter can clearly indicate whether the installation of the lightning surge damage suffered from the impact of lightning and power line. Because we are now using either Zinc oxide varistors or GDT module only when the physical damage to the structure of these devices, we know that lightning is installed where there is lightning; But after installing lightning counter, we'll know at the surge protection products installation place. Model FLRC-L/II Nominal voltage (Un) 220VAC Indicator 0~225 Counting Current (rise time ≥8μs) 50A（8/20us） Counting max current 150KA（8/20us） Date/ time indication Y/M/D/H/M/S Communication RS485 Installation Indoor installation, 35mm DIN Enclosure material 94-V0 Degree of protection IP20 Dimension (mm) 72*88*59（L*W*H）
