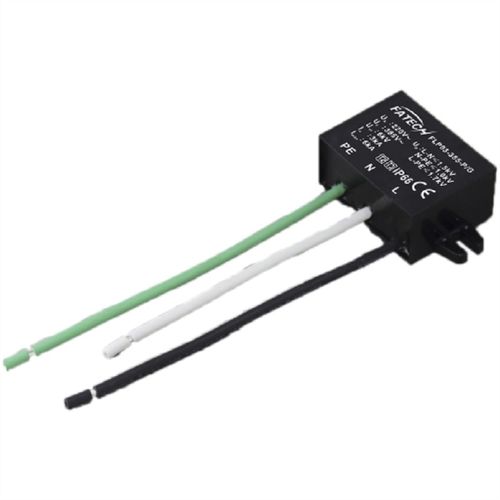

Type 3 surge arrester FLP05-150-P/AG

for power suppliesfor LED lightingoutdoor

1.Description Fatech self-designed LED street light surge protection module, awarded Patent in China, with thermal cut-off member inside, including FLP05(Imax 10kA), FLP10 (Imax 20kA) series, and parallel type available for customer's different application. 2.Characteristics 1) New designed LED lighting surge protection module. 2) Specifically for outdoor and commercial LED lighting applications, LED signage and traffic light manufacturers, including roadway lighting, parking garage lighting, wash wall lighting, traffic lighting, flood lighting, digital signage, street lightning, and tunneal lighting. 3) Imax 10kA lightning surge protection. 4) Metal oxide varistor (MOV) thermal protection. 5) With built-in thermal disconnect function. 6) Parallel connected SPD. 7) Waterproof IP64. 3. Electrical Parameters 1) Test class IEC/EN/VDE: Class II+III/C+D/T2 T3 2) Type of Network: LED street light 3) Protection mode: L-N, L-PE, N-PE 4) Nominal voltage 50(60)Hz Un: 120V~ 5）Rated Voltage (Max.Cont. Operating Voltage) Uc: 150V~ 8) Open circuit voltage Uoc: 10kV 9) Response time tA: L-N: ≤25ns; N-PE: ≤100ns 10) Recommended back-up fuse: 16A 11) Thermal Cut-off Member: Internal 12) Operation temperature range / altitude: -40℃~+80℃/3000m 13) Degree of protection: IP64 14) Housing material: UL94V0
