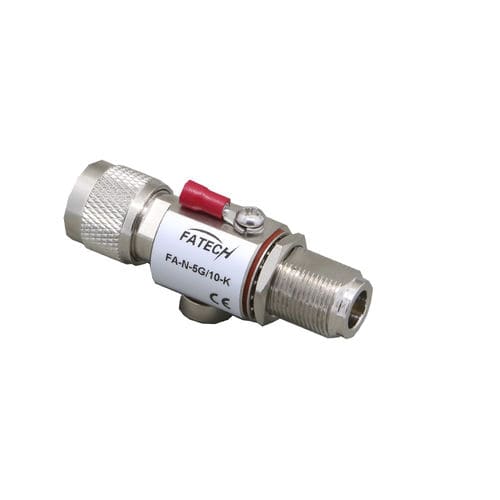

Type 3 surge protector FA-N Series

for radiofrequency applicationsfor RF coaxial cablecoaxial

1.Description FATECH FA series antenna / RF surge protective device are designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. Incudling BNC, N, TNC connector. 2. Characteristics 1) FA-N-***/***-L (lambda/4) type antenna surge protective device is designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. 2) High discharge capacity, low residual voltage. 3) Material brass. 4) Interface port: coaxial (N) 3. Electrical Parameters 1) Interface port type: coaxial(N) 2) Type of network: Signal transmission system 3) Working frequency range: 800-1000MHz / 1700-1900MHz 5) Operating environment: Indoor or dry 6) Relative humidity: ≤95% 7) Storage temperature: -40℃~+85℃ 8) Operating temperature: -25℃~+70℃ 9) D.C.spark-over voltage: 90V 10) Characteristics impedance: 75Ω 11) Max. transmission power: 200W 12) Insertion loss: ≤0.2dB 13) Voltage standing wave ratio: ≤1.2 14) Testing standard: IEC 61643-11:2000
