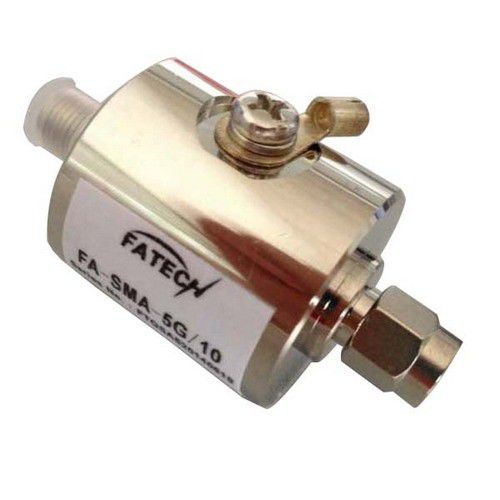

Type 3 surge protector FA-SMA Series

for radiofrequency applicationsfor RF coaxial cablecoaxial

1. Description FATECH FA series antenna / RF surge protective device are designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. Incudling BNC, N, TNC connector. 2. Characteristics 1) Coaxial surge protector SMA 5G is designed for protection of antenna coaxial device, receive/transmit system, microwave communication, broadcast television, navigation communication etc. 2) High discharge capacity, low residual voltage. 3) Material brass. 4) Interface port: coaxial (SMA), F-M 5) DC-5GHz 3. Electrical Parameters 1) Interface port type: coaxial(N) 2) Type of network: Signal transmission system 3) Working frequency range: DC-5GHz 5) Operating environment: Indoor or dry 6) Relative humidity: ≤95% 7) Storage temperature: -40℃~+85℃ 8) Operating temperature: -25℃~+70℃ 9) D.C.spark-over voltage: 230V 10) Characteristics impedance: 50Ω 11) Max. transmission power: 200W 12) Insertion loss: ≤0.3dB 13) Voltage standing wave ratio: ≤1.2 14) Testing standard: IEC 61643-11
