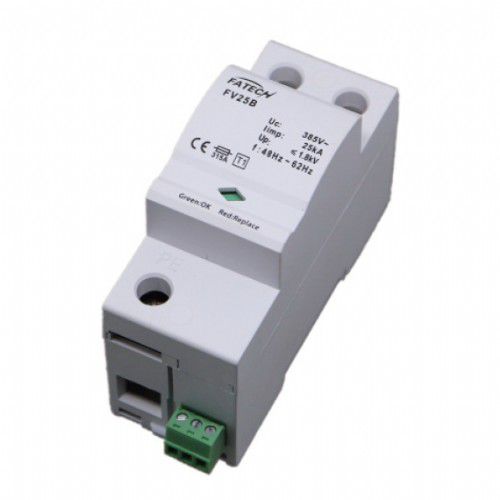

Type 1 surge arrester FV25B/1-385Sclass Iremote signalingfor power supplies
Add to favorites
Compare this product
Characteristics
- Type
- type 1, class I
- Applications
- for power supplies, remote signaling
- Other characteristics
- with fault indication, compact, single-pole, N-PE, low-voltage, AC, DIN rail
- Voltage
220 V, 380 V, 385 V
- Primary current
25,000 A
Description
- High impulse current multi-layer spark gap Class I surge arrester Iimp 25kA
- With indication window, with remote control contacts,
- Compact design,
-Used in the lightning protection zones concept at boundary LPZ0B-LPZ1,
-The core parts are spark gap with high discharge capacity,
-35mm2 DIN-rail in accordance with EN 50022/DIN46277-3,
-Low residual voltage and quick response.
-Protection mode: L-N / N-PE / L-PE.
