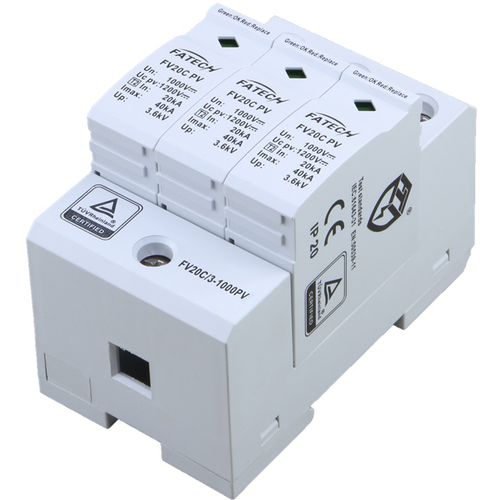

Type 2 surge arrester FV20C/3-1000PV

class IIremote signalingfor photovoltaïc installations

-TUV mark certified DC surge protector used for photovoltaic system. -The core parts are metal oxide vristor components with high discharge capacity. -With Reliable control thanks to Thermo Dynamic Control disconnector. -With remote signaling contact for control device surge arrester. -Fault indication via red mark in the inspection window. -3 poles, Y type surge protective device. SPD protection conforms to EN50539-11/IEC61643-31 Type 2 SPD installation type conforms to EN50539-11/IEC61643-31 ClassII Protection level conforms to DIN VDE0675-6 C Type of Network Photovoltaic systemsDC side Protectionmode (+/-)-->PE , (-/+)-->PE, (+/-)-->(-/+) Short-circuit current rating ISCPV 100A Continuous operating current ICPV <20 µA Rated load current IL 80 A Residual current IPE ≤20 µA dc ≤500 µA ac Standby power consumption PC ≤25 mVA Maximum discharge current (8/20μs) Imax 40 kA Nominal discharge current (8/20μs) In 20 kA Voltage protection level Up ≤3.6 kV Isolation resistance Risol ＞1000 MΩ Response time tA ≤25 ns Remote control contact YES Disconnection indicator Mechanical indicator (Green: OK, Red: Replace) I/O Connections By screw terminal:10-35mm2 By connection bus Installation location Inside Mounting type Symmetrical rail (EN50022/DIN46277-3) Color Gray Degree of protection IP20 Housing material UL94V-0 Ambient temperature -40°C ~+80°C Altitude ≤2000 m (amsl (above mean sea level)) Permissible humidity 30%~90%
