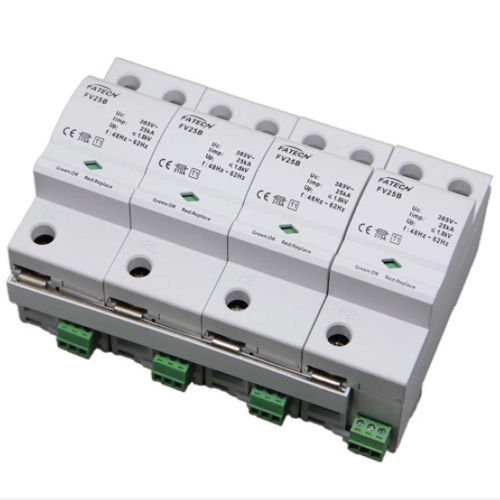

Class III surge arrester FV25B/3+NPE-xxx Stype 1 + 2ACN-PE
Add to favorites
Compare this product
Characteristics
- Type
- class III, type 1 + 2
- Other characteristics
- N-PE, 3-pole, AC
- Voltage
1.5 kV
- Primary current
25,000 A
Description
TUV certified 3 phase Iimp 25kA AC surge arrester
Item No: FV25B/3+NPE-xxx S
1. TUV approved Type 1+2, 25kA@10/350μs, 50kA@8/20μs 3 phase surge arrester.
2. With indication window and remote control contacts.
3. Unique designing, patent technology.
4. Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.
5. The core parts are multilayer spark gap and metal oxide varistor with high discharge capacity.
6. Low residual voltage.
7. Protection mode: L1, L2, L3-N, N-PE
