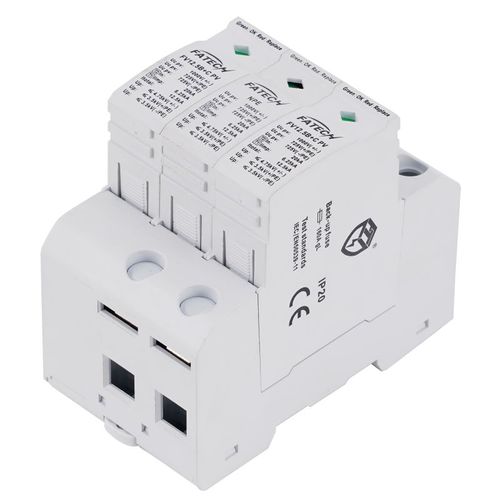

Type 1 + 2 surge arrester FV12.5B+C/2+NPE-1000PVNSfor photovoltaïc installationsplug-inDC
Add to favorites
Compare this product
Characteristics
- Type
- type 1 + 2
- Applications
- for photovoltaïc installations
- Other characteristics
- MOV, 3-pole, DC, plug-in
- Voltage
1,000 V
- Primary current
12,500 A
Description
type 1+2 12.5kA surge arrester for solar system
Item No: FV12.5B+C/2+NPE-1000PVNS
-Type 1+2 12.5kA DC surge arrester
-MOV+GDT based.
-Specially used for photovoltaic system 1000Vdc.
-The core parts are metal oxide vristor components with high discharge capacity.
-With Reliable control thanks to Thermo Dynamic Control disconnector.
-Without remote signaling contact for control device.
-Fault indication via red mark in the inspection window.
- Type 1+2/ Class B+C
-3 poles, Y type
