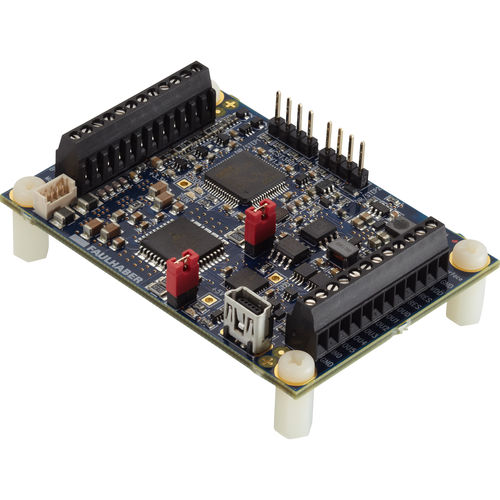

Single-axis positioning motion controller MC series

brushlessCANopenEtherCAT

Motion Controllers FAULHABER Motion Controllers are user-friendly, single-axis position controllers – customised for actuating DC motors, brushless motors (BL) and linear motors (LM) from FAULHABER. For positioning tasks with a high resolution and applications with very exact speed control in the area of motion control, these are available with RS232, CANopen or even with EtherCAT interfaces. In addition, Motion Controllers offer the advantage of simple configuration using the "FAULHABER Motion Manager" software. Features of the Motion Controller FAULHABER Motion Controllers, available in housed and unhoused variants, are highly dynamic positioning systems and control DC, LM or BL motors. The Motion Controllers are configured here via the FAULHABER Motion Manager software. The drives can be operated in the network via the CANopen or EtherCAT fieldbus interface (only included in V3.0 Motion Controllers). In smaller setups, networking to Motion Control can also be performed via the RS232 interface. The Motion Controllers operate in the network as a slave. Master functionality for actuating other axes is not provided. After basic commissioning with the Motion Manager software, controllers can alternatively also be operated without communication interface. Motion Control – Generation V2.5 The position controllers from FAULHABER of generation V2.5 offer proven technology in the area of motion control combined with simple configuration and commissioning. In spite of the simple configuration, the Motion Controllers offer diverse configuration options and are available in the smallest of sizes.
