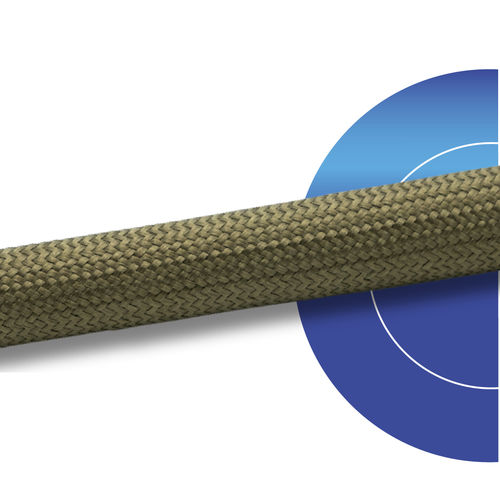

Braided sleeve TBA
thermal protectionfor cablesbasalt fiber

braided sleeve
braided sleeve
braided sleeve
Add to favorites
Compare this product


Characteristics

Type
thermal protection
Structure
braided
Applications
for cables
Material
basalt fiber
Protection level
halogen-free, acid-resistant, moisture-resistant, fireproof
Other characteristics
flexible
Diameter

Max.: 50 mm
(2 in)

Min.: 2 mm
(0.1 in)

Temperature

Max.: 560 °C
(1,040 °F)

Min.: -260 °C
(-436 °F)

Description

Braided sleeving in basalt fibre untreated, non-impregnated Characteristics • Continuous working temperature : from -260°C to +560°C. Peaks at +600°C • Fireproof • Resistance to flame : non flammable • Low heat expansion coefficient • Good flexibility • Very high chemical resistance, especially to acid • Good mechanical resistance • Low rate of moisture absorbtion • Good thermal insulation properties • Low density • Good behaviour with soldering iron : no retraction • Frays slightly when cut • 100% recyclable

Catalogs

TBA
TBA
1 Pages
